System Features

01

The 3D Modeling is Convenient and Fast

Visual design can be realized by 3D modeling, thereby greatly reducingthe approval speed of design drawings and improving the design quality.

X

The 3D Modeling is Convenient and Fast

The on-site construction time and shortening of the overall constructionschedule is achieved by having completemodules manufactured off-site in specialised facilities. With manufacturing taking place in off-site facilitiesan added benefit is that weather related delays on-site are also avoided
02

Drawing Standardization

As a large number of standardized drawings are used in the design ofthe skid mounted module device, the design workload and design cycle aregreatly reduced.

X

Drawing Standardization

Is achieved by a much clearerscope of supply which in turn makes the supplier responsible for managingcost overruns. Reduced manufacturing and assembly time is required, the use ofstandard and readily available materials help reduce costs. Handlingand logistical costs are also reduced because is a single component thatrequires transport instead of many individual components
03

Purchase in Batch

As a large number of standardized drawings are used in the design ofskid mounted module device, the pipeline, instrument, electrical and otheraccessories required by the device have realized batch purchase, thereby effectivelyshortening the purchasin…

X

Purchase in Batch
04

Reducing On-site Construction Time and Shortening Construction Period

The skid mounted module device is supplied as a whole, assembled,tested and inspected in the plant, thereby greatly reducing the on-site constructionwork and being convenient to achieve installation and commissioning.

X

Reducing On-site Construction Time and Shortening Construction Period

Manufacturingin a single company/location ensuresconsistency, simplification of procedures and a specialist’s attention to quality. Fabricatingthe process system indoors means that there are virtually perfect conditionswhen completing all welding and other quality demanding tasks and by a highly skilled workforce
05

Improving Construction Efficiency and Guaranteeing Construction Quality

The skid mounted module is supplied as a whole. This not only ensuresthe quality, but also reduces the demand for on-site construction technicians, avoidsrework caused by unqualified welding on site, and improves the constructionquality and efficienc…

X

Improving Construction Efficiency and Guaranteeing Construction Quality
06

Saving Engineering Resources and Reducing Engineering Investment

The skid mounted module device usethe 3D space and layout theequipment in compact . This not only saves material consumption, but also savesland resources.

X

Saving Engineering Resources and Reducing Engineering Investment

A modularskid comprises of an integrated structure with which to mount and assemble thewhole process system together as a single complete unit. This results in an efficient and simple to handle andtransport system. A modular skid can also be chosen to replace part of asystem that is obsolete. This ultimately results in less time being spent withworkarounds
07

Convenience for Operation and Maintenance

The skid mounted module device is supplied as a whole, so that thesupplier can solve the problems in time, the operation stability andreliability of the device is improved, and the equipment is easy to maintainand control.

X

Convenience for Operation and Maintenance
08

High Value of Reuse

The skid mounted module device has strong mobility and high reuse rateand can be relocated as a whole and used repeatedly, and the reuse rate of theequipment is up to 90%.

X

High Value of Reuse

Thereexists a large part of the market for skids/modules that are reusable infunction moving from site to site. Thisfacilitates the need for design andfabrication of a series of units requiring batch purchasing and standardisationof drawings and components

国产福利AV导航,av小电影免费在线观看,成人电影AVy中文字幕,AⅤ在线视频观看,www.av毛片

Skid Mounted (Modular)Systems

Petrochemical

Nuclear Power

New Energy

Oil & Gas

Offshore

Shipping

Mineral

Refining

Medicine

Reliquefying unit

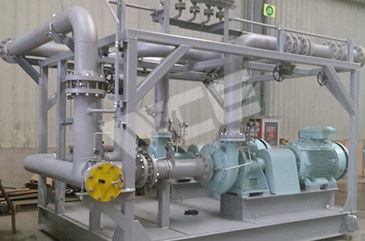

Booster pump unit

Reliquefying unit

Reliquefying unit

Booster pump unit
